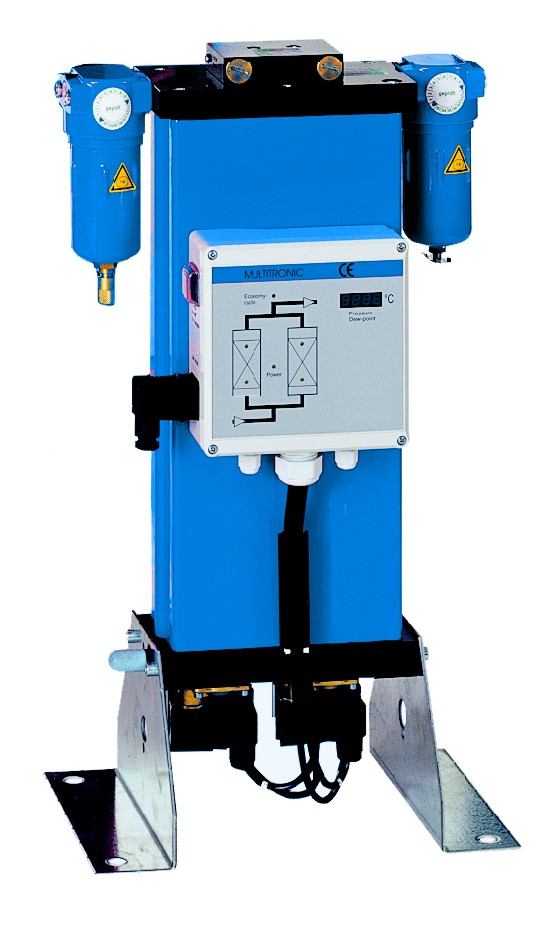

Adsorption Dryers

During the drying process the moist compressed air flows through an adsorption tank. The moisture is bound, which dries the compressed air. This process generates heat. The adsorption material must be regenerated when the adhesive forces are balanced by water deposits. This means that the water must be removed from the adsorption material. For this reason there must be two parallel drying tanks with continual operation. The active tank A dries the compressed air, while the inactive tank B regenerates without pressure.

HLAD Series Heatless Adsorption Dryers

Model	Flow Capacity	Compressed Air Connection	Dimensions	Weight	*Pressure Dewpoint:-40 ºC Working Pressure::6-10bar, Others pressure on request; Inlet Temperature:≤50℃; Ambient Temerature:≤50℃; Electrical Connection: 220V/1Phase/50&60Hz,0.032kw; 　 Option: 1.Working Pressure:>10bar or <5bar; 2.Inlet Tmeperature >50℃; 3.Intergrated Pre-filter and After filter; 4. Intergrated Dewpoit Transducer
Model	(m3/min)*	Compressed Air Connection	L×W×H in mm	kg
HLAD-5.0	0.7	G1/2	690×500×915	120
HLAD-10	1.6	G1	690×500×1198	190
HLAD-20	2.6	G1	780×500×1250	280
HLAD-30	3.8	G1	840×540×1260	320
HLAD-60	7.0	G1-1/2	1010×700×1590	480
HLAD-75	8.5	G1-1/2	1010×700×1730	540
HLAD-100	11.5	G2	1240×800×1960	650
HLAD-120	13.5	G2	1240×800×2240	690
HLAD-150	17	DN65	1280×860×2360	790
HLAD-200	23	DN65	1320×860×2480	920
HLAD-250	27	DN65	1700×930×2570	1050
HLAD-300	35	DN80	1750×960×2630	1200

HAD Series Heated Adsorption Dryers

Model	Flow Capacity	Power	Compressed Air Connection	Dimensions	Weight	*Pressure Dewpoint:-70 ºC Working Pressure::6-10bar, Others pressure on request; Inlet Temperature:≤50℃; Ambient Temerature:≤50℃; Electrical Connection: 220V/1Phase/50&60Hz,0.032kw; 　 Option: 1.Working Pressure:>10bar or <5bar; 2.Inlet Tmeperature >50℃; 3.Intergrated Pre-filter and After filter; 4. Intergrated Dewpoit Transducer
Model	(m3/min)*	kw	Compressed Air Connection	L×W×H in mm	kg
HAD-5.0	0.7	0.9	G1/2	690×500×915	120
HAD-10	1.6	0.9	G1	690×500×1198	190
HAD-20	2.6	1.5	G1	780×500×1250	280
HAD-30	3.8	1.5	G1	840×540×1260	320
HAD-60	7.0	2.4	G1-1/2	1010×700×1590	480
HAD-75	8.5	2.4	G1-1/2	1010×700×1730	540
HAD-100	11.5	4.5	G2	1240×800×1960	650
HAD-120	13.5	4.5	G2	1240×800×2240	690
HAD-150	17	5.4	DN65	1280×860×2360	790
HAD-200	23	7.5	DN65	1320×860×2480	920
HAD-250	27	9	DN65	1700×930×2570	1050
HAD-300	35	10.8	DN80	1750×960×2630	1200

Note: If you are interested in our designs and details, please contact us for a quote text &products presentation.
