We are factory and we have  many certified suppliers of the compressor parts, so we can offer all kinds of screw & scroll  compressor parts with high quality and competitive price.

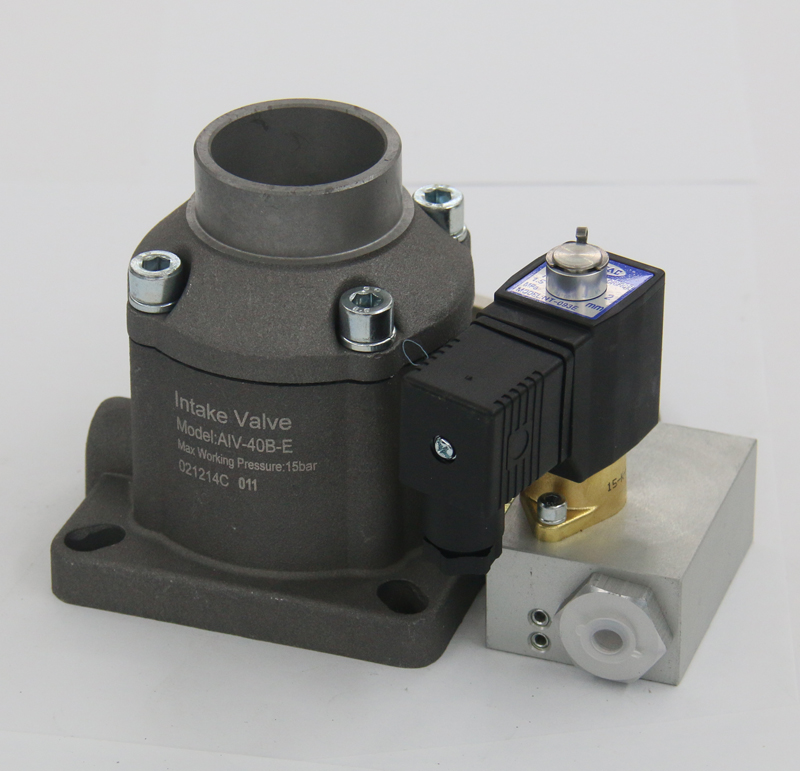

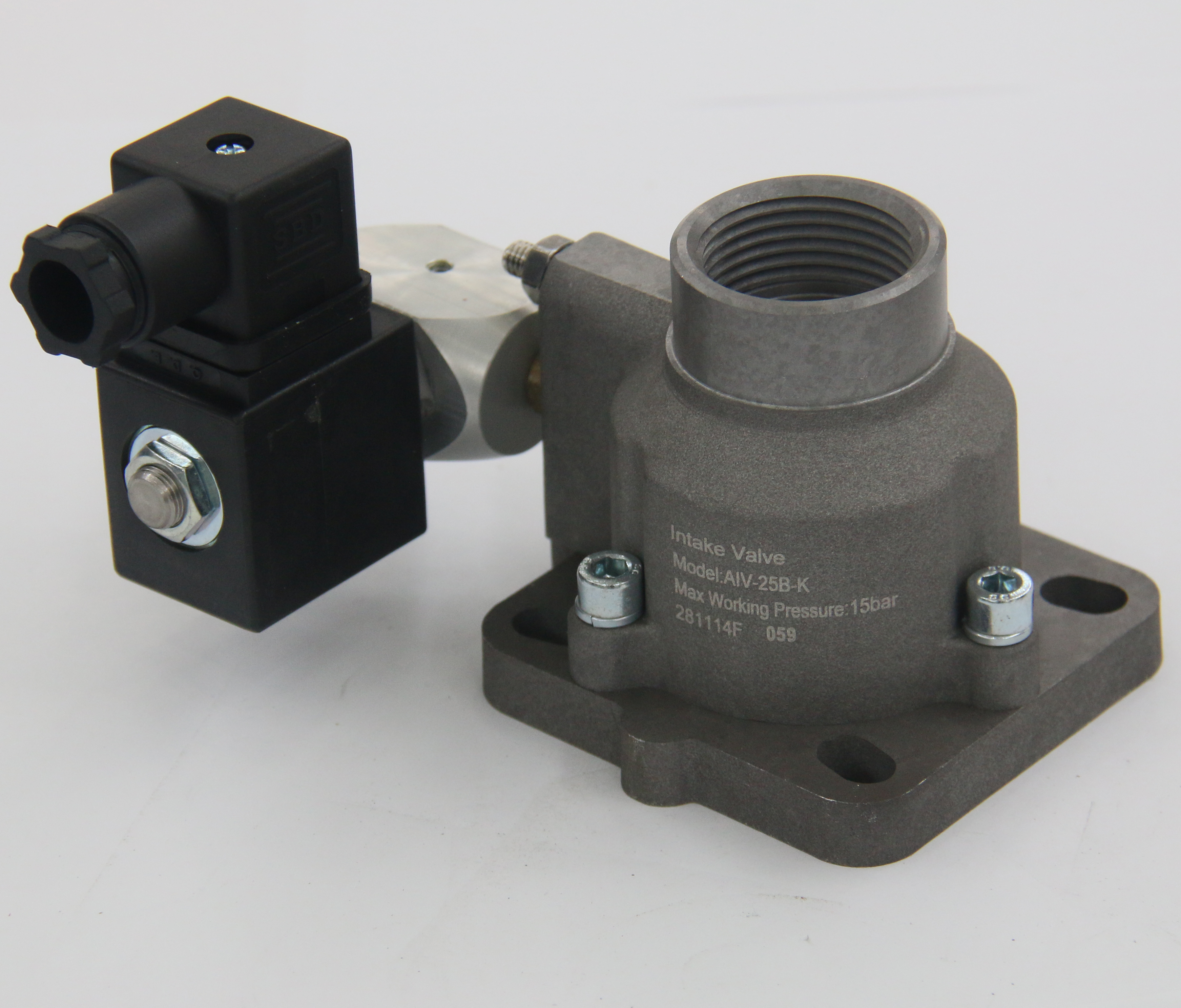

	Model		AVI-25B-K		Model		AVI-40B-K
	Flow Rate	m3/min	0.3-1.5		Flow Rate	m3/min	1.5-2.5
	Working Pressure	bar	0-15		Working Pressure	bar	0-15
	Working Temperature	℃	-20~120		Working Temperature	℃	-20~120
	Ambient Temperature	℃	-20~50		Ambient Temperature	℃	-20~50
	Voltage of Solenoid Valve		220V/50Hz/N.O.		Voltage of Solenoid Valve		220V/50Hz/N.O.
	Inlet Port Dimension	mm	40		Inlet Port Dimension	mm	48
	Material		Aluminum		Material		Aluminum

　

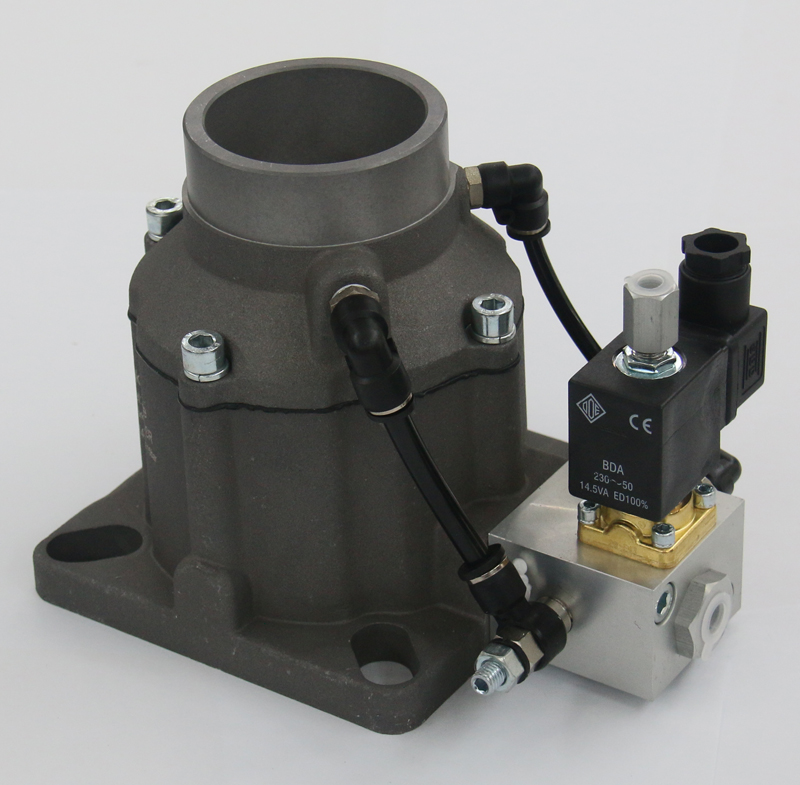

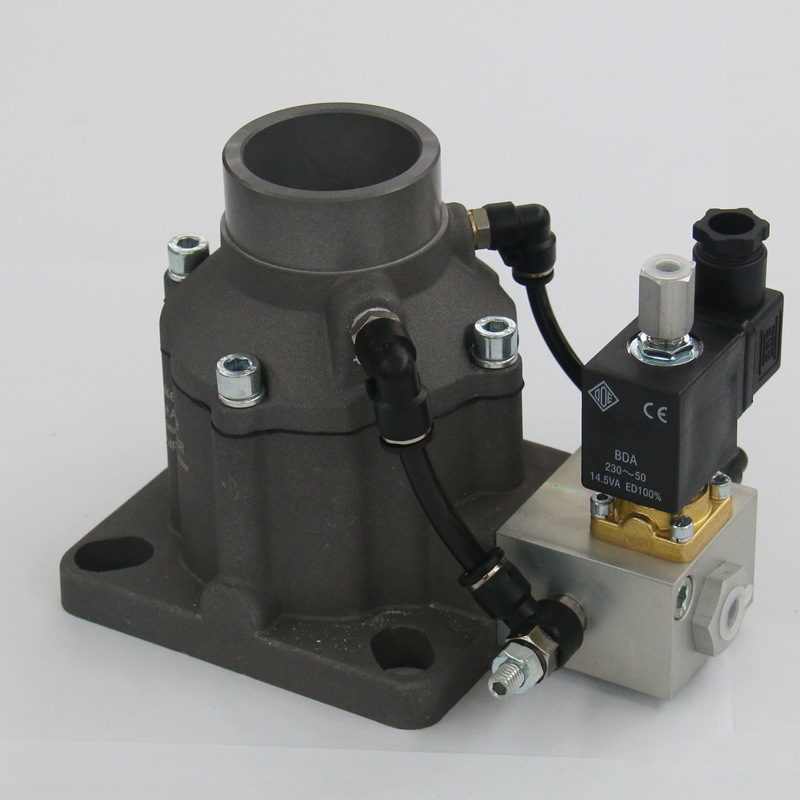

	Model		AVI-50B-SR		Model		AVI-65C-SR
	Flow Rate	m3/min	2.5-4.5		Flow Rate	m3/min	4.5-8.0
	Working Pressure	bar	0-15		Working Pressure	bar	0-15
	Working Temperature	℃	-20~120		Working Temperature	℃	-20~120
	Ambient Temperature	℃	-20~50		Ambient Temperature	℃	-20~50
	Voltage of Solenoid Valve		220V/50Hz/N.O.		Voltage of Solenoid Valve		220V/50Hz/N.O.
	Inlet Port Dimension	mm	62		Inlet Port Dimension	mm	78
	Material		Aluminum		Material		Aluminum

　

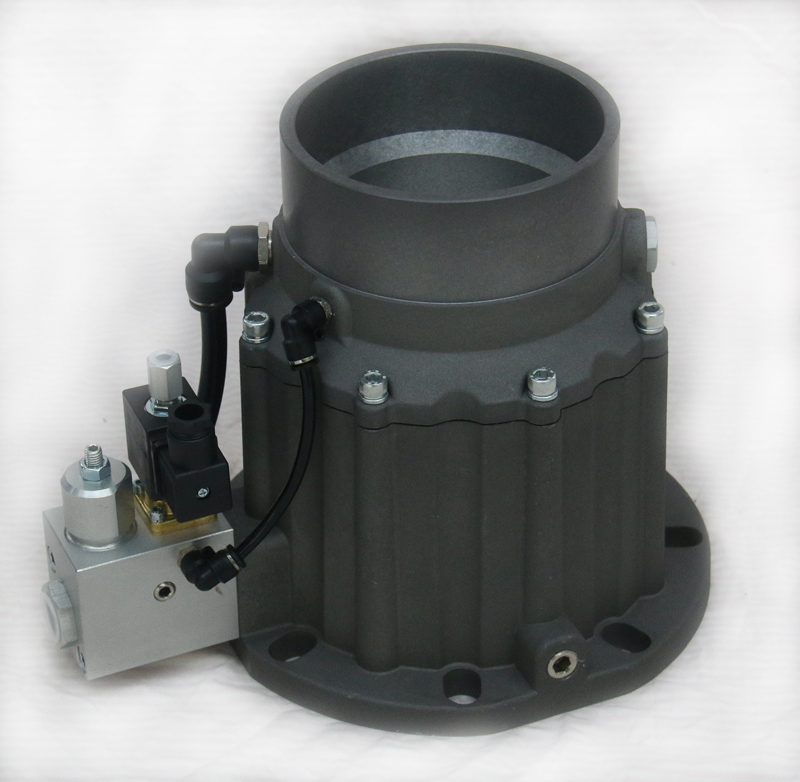

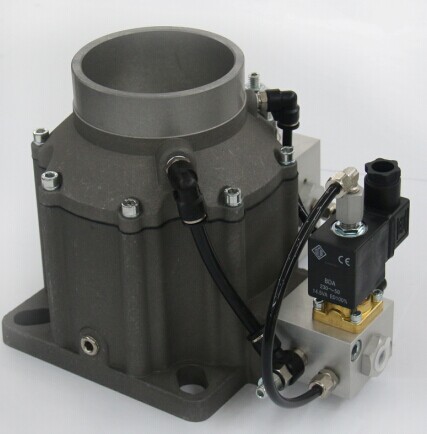

	Model		AVI-85B-F		Model		AVI-120B-K
	Flow Rate	m3/min	8.0-12		Flow Rate	m3/min	16-20
	Working Pressure	bar	0-15		Working Pressure	bar	0-15
	Working Temperature	℃	-20~120		Working Temperature	℃	-20~120
	Ambient Temperature	℃	-20~50		Ambient Temperature	℃	-20~50
	Voltage of Solenoid Valve		220V/50Hz/N.O.		Voltage of Solenoid Valve		220V/50Hz/N.O.
	Inlet Port Dimension	mm	100		Inlet Port Dimension	mm	150
	Material		Aluminum		Material		Aluminum

　

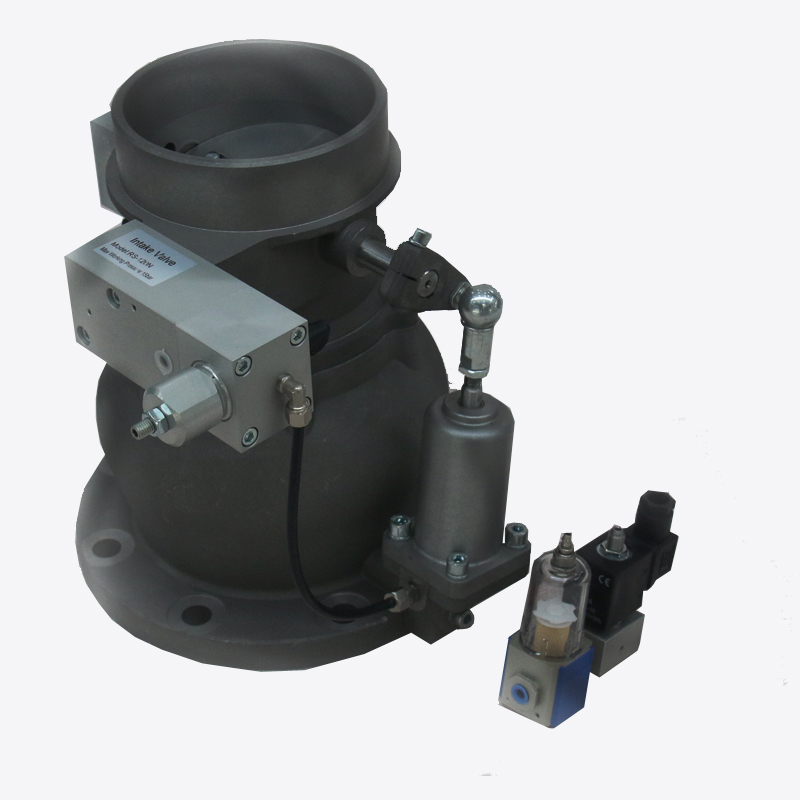

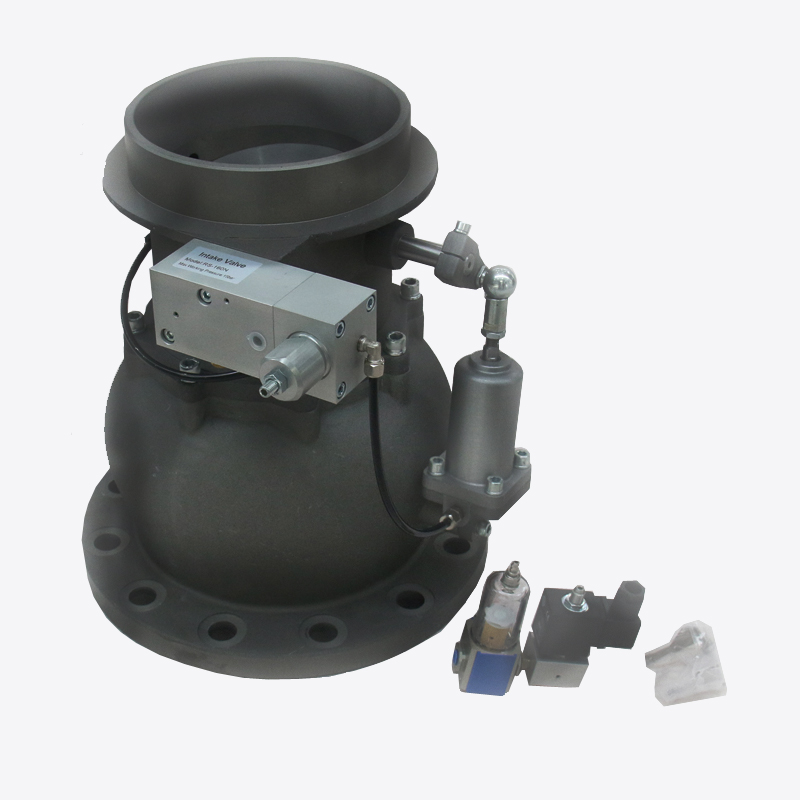

	Model		RS-120N		Model		RS-160N
	Flow Rate	m3/min	16-25		Flow Rate	m3/min	25-40
	Working Pressure	bar	0-15		Working Pressure	bar	0-15
	Working Temperature	℃	-20~120		Working Temperature	℃	-20~120
	Ambient Temperature	℃	-20~50		Ambient Temperature	℃	-20~50
	Voltage of Solenoid Valve		220V/50Hz/N.O.		Voltage of Solenoid Valve		220V/50Hz/N.O.
	Inlet Port Dimension	mm	150		Inlet Port Dimension	mm	201
	Material		Aluminum		Material		Aluminum

Note:

1. Special voltage of solenoid valve on request;

2. System Pressure on Idling can adjust;

3. Proportional function as option from AVI-50

Min. Pressure Valve

　

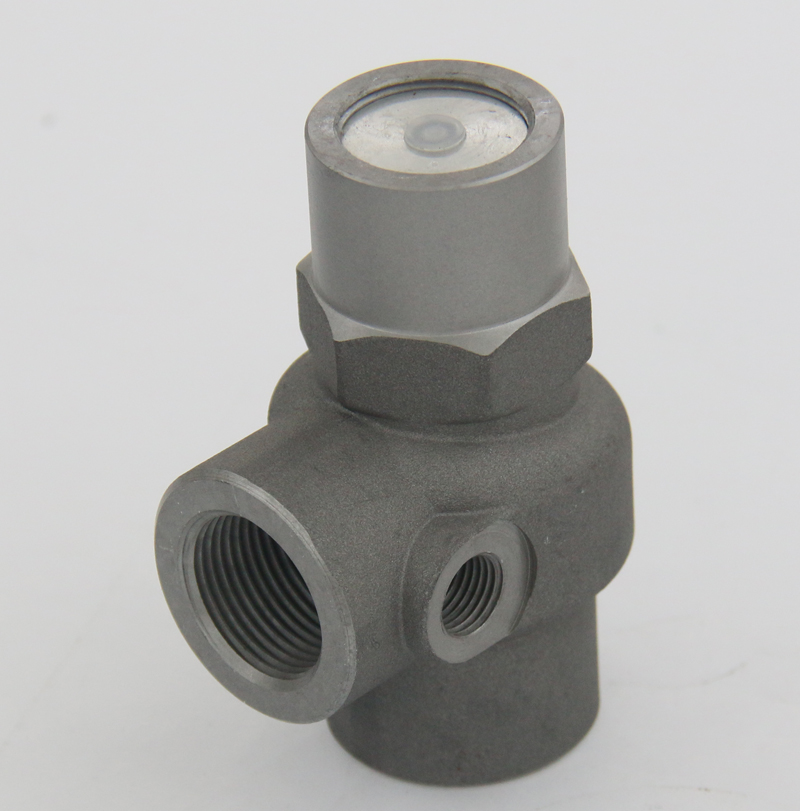

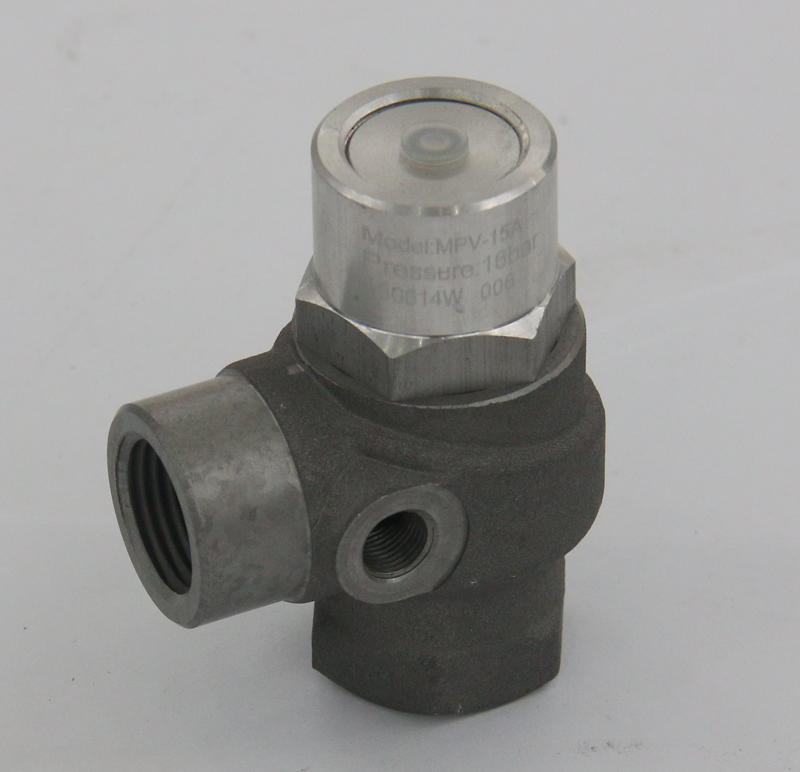

	Model		MPV-15A		Model		MPV-20A
	Open Pressure	bar	4.5		Open Pressure	bar	4.5
	Working Pressure	bar	0-16		Working Pressure	bar	0-16
	Working Temperature	℃	-20~130		Working Temperature	℃	-20~130
	Ambient Temperature	℃	-20~50		Ambient Temperature	℃	-20~50
	Inlet Port Dimension		G1/2		Inlet Port Dimension		G3/4
	Outlet Port Dimension		G1/2		Outlet Port Dimension		G3/4
	Material		Aluminum		Material		Aluminum

　

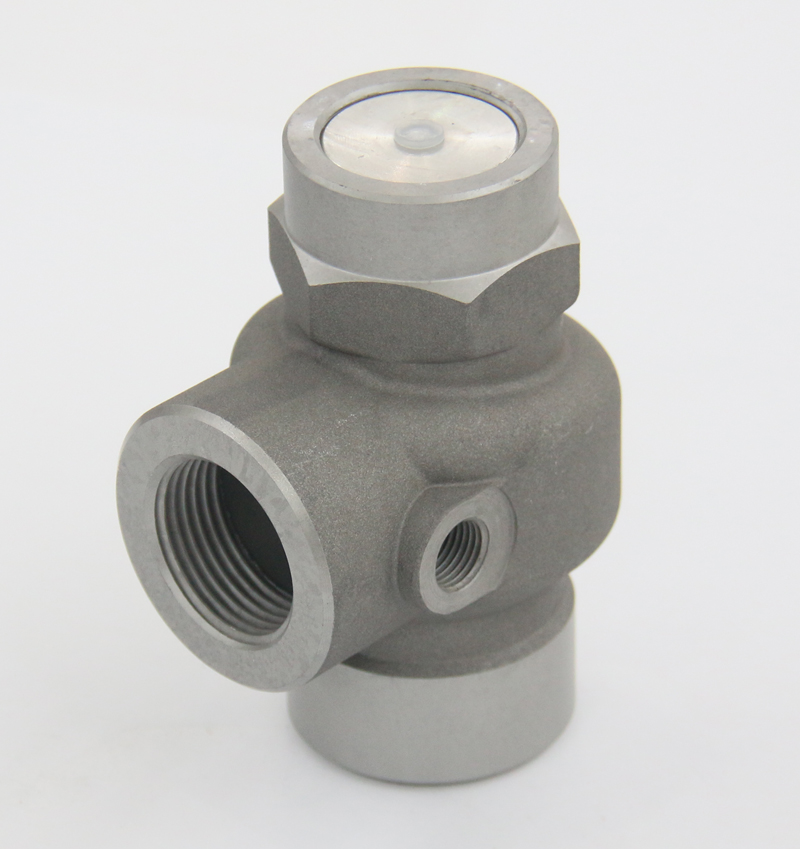

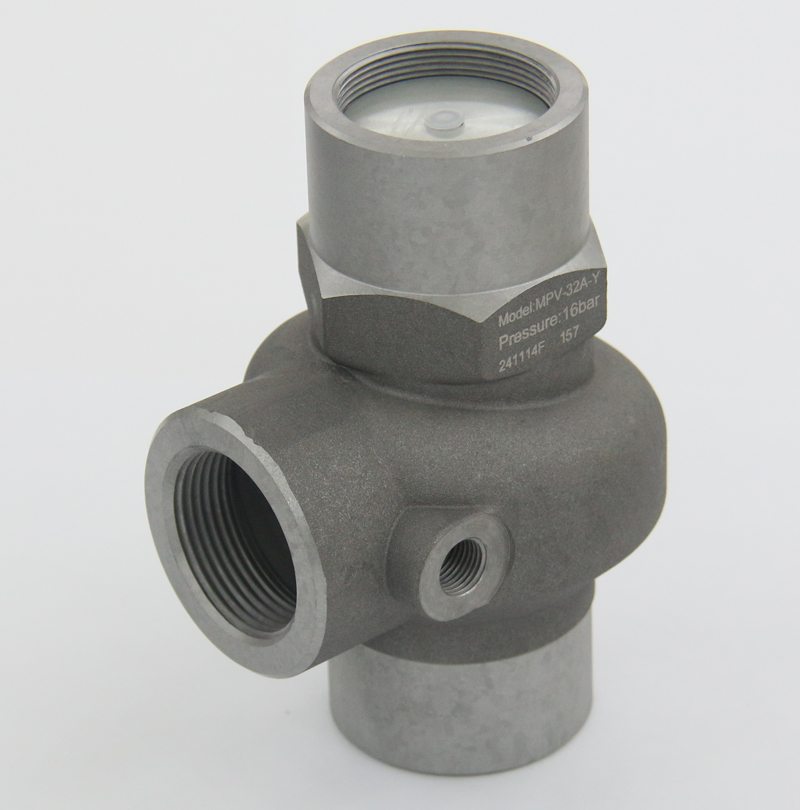

	Model		MPV-25A		Model		MPV-32A
	Open Pressure	bar	4.5		Open Pressure	bar	4.5
	Working Pressure	bar	0-16		Working Pressure	bar	0-16
	Working Temperature	℃	-20~130		Working Temperature	℃	-20~130
	Ambient Temperature	℃	-20~50		Ambient Temperature	℃	-20~50
	Inlet Port Dimension		G1		Inlet Port Dimension		G1-1/4
	Outlet Port Dimension		G1		Outlet Port Dimension		G1-1/4
	Material		Aluminum		Material		Aluminum

　

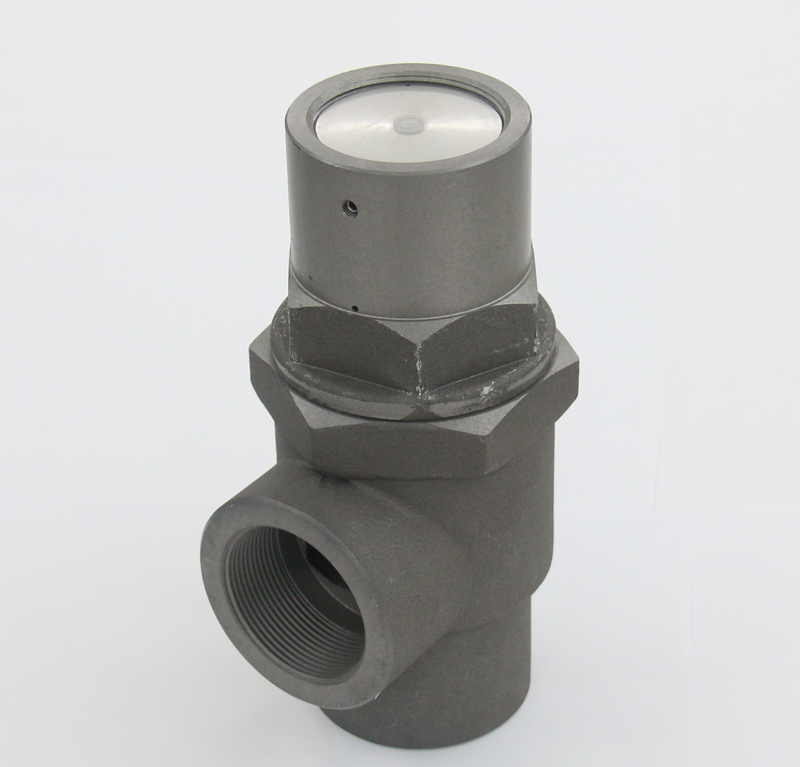

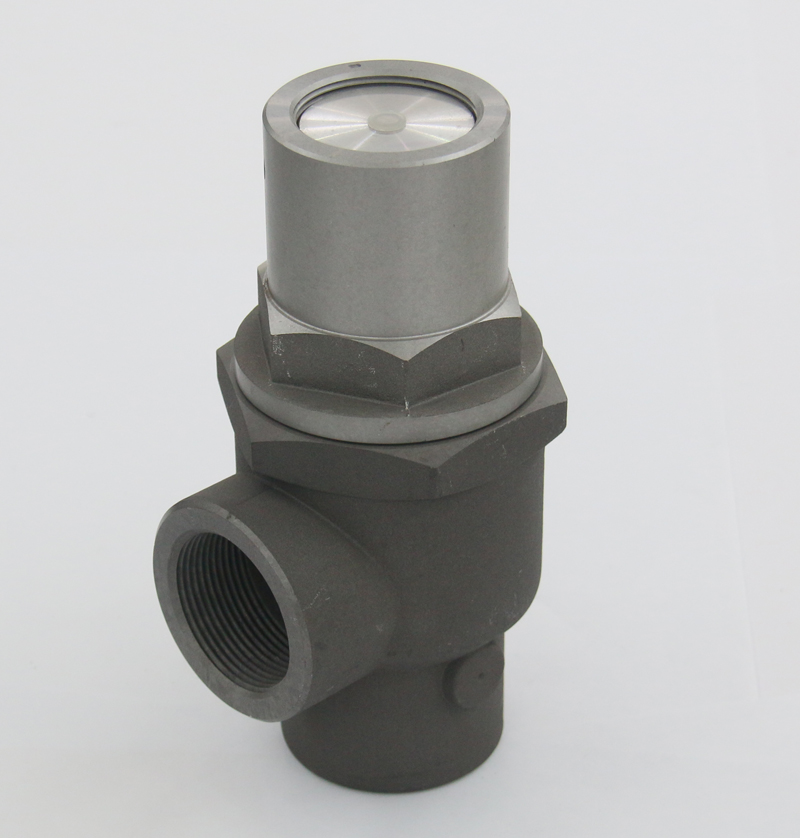

	Model		MPV-40A		Model		MPV-50A
	Open Pressure	bar	4.5		Open Pressure	bar	4.5
	Working Pressure	bar	0-16		Working Pressure	bar	0-16
	Working Temperature	℃	-20~130		Working Temperature	℃	-20~130
	Ambient Temperature	℃	-20~50		Ambient Temperature	℃	-20~50
	Inlet Port Dimension		G1-1/2		Inlet Port Dimension		G2
	Outlet Port Dimension		G1-1/2		Outlet Port Dimension		G2
	Material		Aluminum		Material		Aluminum

　

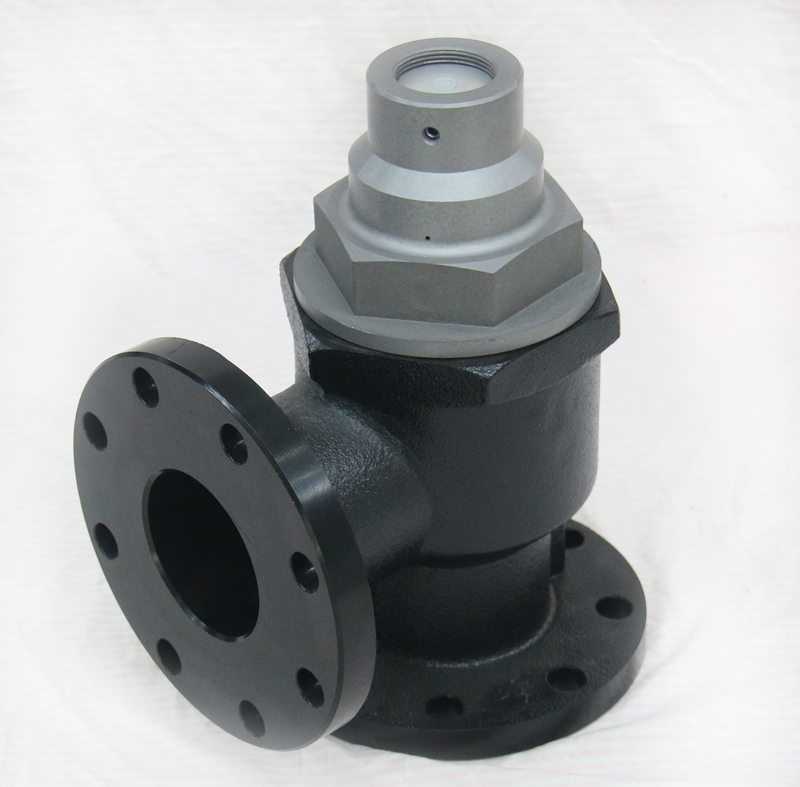

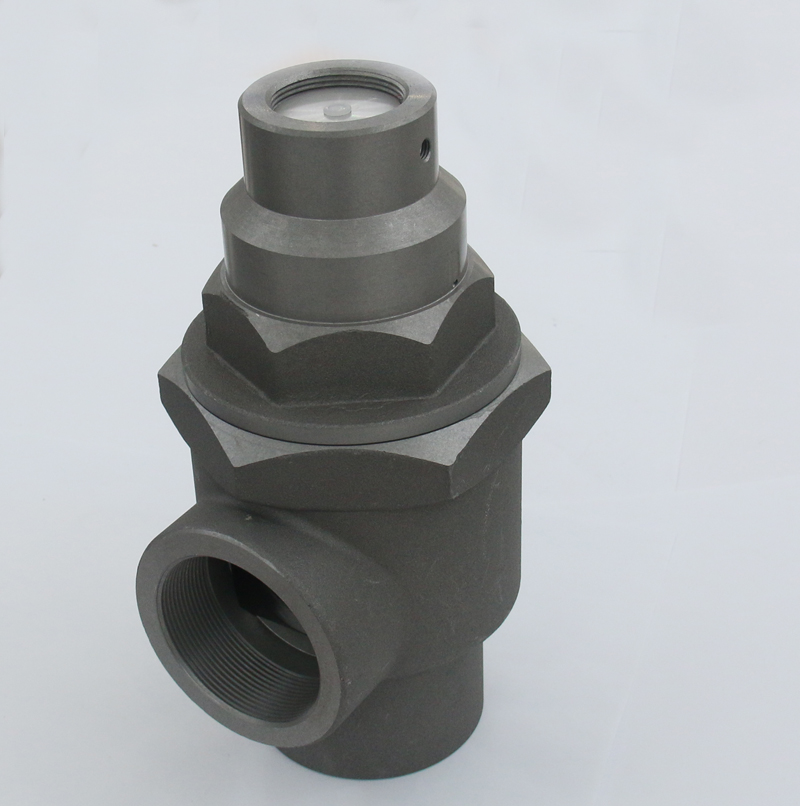

	Model		MPV-65A		Model		MPV-80F
	Open Pressure	bar	4.5		Open Pressure	bar	4.5
	Working Pressure	bar	0-16		Working Pressure	bar	0-16
	Working Temperature	℃	-20~130		Working Temperature	℃	-20~130
	Ambient Temperature	℃	-20~50		Ambient Temperature	℃	-20~50
	Inlet Port Dimension		G2-1/2		Inlet Port Dimension		DN80
	Outlet Port Dimension		G2-1/2		Outlet Port Dimension		DN80
	Material		Aluminum		Material		Aluminum

　

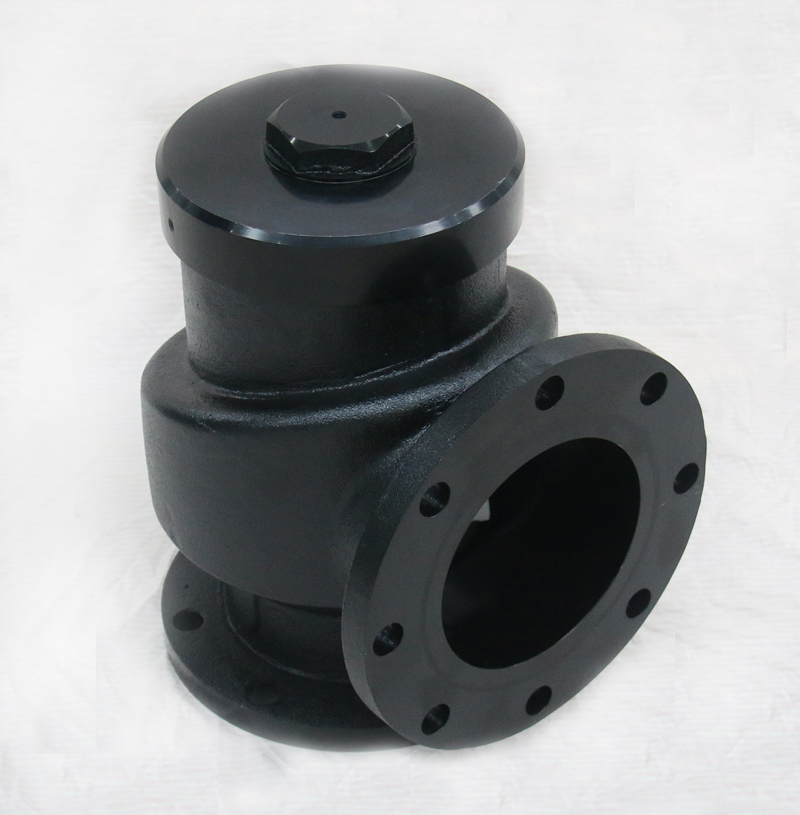

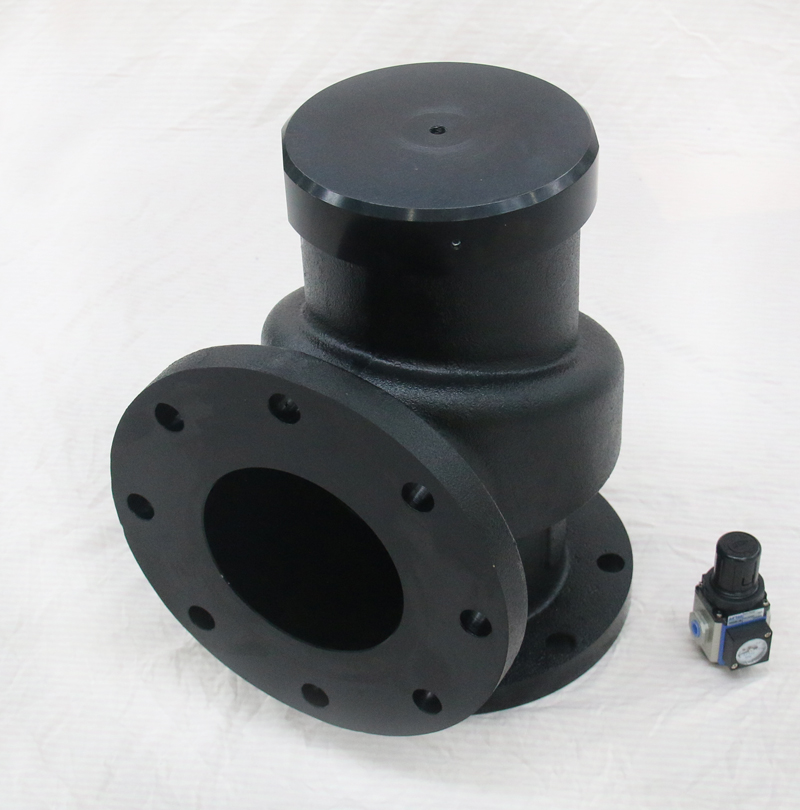

	Model		MPV-125F		Model		MPV-160F
	Open Pressure	bar	4.5		Open Pressure	bar	4.5
	Working Pressure	bar	0-16		Working Pressure	bar	0-16
	Working Temperature	℃	-20~130		Working Temperature	℃	-20~130
	Ambient Temperature	℃	-20~50		Ambient Temperature	℃	-20~50
	Inlet Port Dimension		DN125		Inlet Port Dimension		DN160
	Outlet Port Dimension		DN125		Outlet Port Dimension		DN160
	Material		Aluminum		Material		Aluminum

Opion:

1. Flange for inlet and outlet from MPV-20A;

2. Special open pressure on request.

Safety Valve

We can supply all model safety valve per your specification.

Note: If you are interested in our designs and details, please contact us for a quote text &drawings.
