Refrigerant Dryers

One of the most economic methods of treating compressed air is with a refrigerant dryer. By cooling the compressed air down to near freezing point, the water and oil vapour are condensed and particles of dirt are bound together, the resulting condensate is then separated from the air flow. In many cases, the pressure dewpoint need only be a few degrees lower than the ambient temperature to prevent condensate from forming in the pipes.

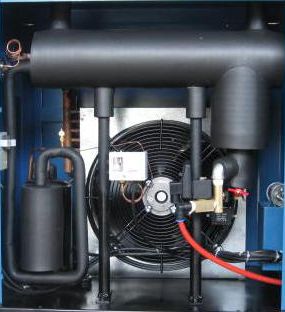

HRD Series Refrigerant Dryer

Model	Flow Capacity	Power Supply	Power Consumption	Compressed Air Outlet	Noise Level	Dimensions	Weight
Model	(m3/min)*	V/Phase/Hz	Kw	Compressed Air Outlet	dB(A)**	L×W×H in mm	kg
HRD-1.0	0.17	220/1/50&60	0.13	G1/2	56	350×300×375	21
HRD-2.0	0.25	220/1/50&60	0.14	G1/2	56	350×300×375	22
HRD-3.0	0.30	220/1/50&60	0.15	G1/2	56	350×300×375	23
HRD-5.0	0.6	220/1/50&60	0.25	G1/2	57	350×350×400	25
HRD-7.5	1	220/1/50&60	0.42	G1	59	700×500×700	70
HRD-10	1.5	220/1/50&60	0.56	G1	60	700×500×700	75
HRD-15	2.0	220/1/50&60	0.65	G1-1/2	62	750×500×900	90
HRD-20	2.5	220/1/50&60	0.75	G1-1/2	63	750×500×900	95
HRD-30	3.8	220/1/50&60	0.97	G1-1/2	65	950×550×1000	120
HRD-50	5.5	220/1/50&60	1.32	G1-1/2	68	950×550×1000	130
HRD-60	7.0	220/1/50&60	1.32	G2	70	1100×550×1100	150
HRD-75	10	220/1/50&60	1.50	G2-1/2	72	1200×600×1200	210
HRD-100	15	380/3/50&60	2.57	G2-1/2	75	1400×680×1350	300
HRD-150	20	380/3/50&60	3.70	DN80	75	1600×780×1420	390
HRD-200	30	380/3/50&60	4.80	DN100	78	1850×1000×1700	680
HRD-300	35	380/3/50&60	5.50	DN100	79	1850×1000×1700	710

*Pressure Dewpoint:2-10 ºC

Working Pressure::2-10bar, Others pressure on request;

Inlet Temperature:≤85℃;

Ambient Temerature:≤50℃

Refrigerant: R 22

Option:

1.Special Voltage;

2.Water-cooling(from model HRD-100 onwards);

3.Bypass assembly;

Conversion factors
According to DIN ISO 7183, refrigerant dryers are designed for 7 bar operating pressure, an ambient temperature of 25 ºC and an
inlet temperature of 35 ºC. For different operating pressures and temperatures, the following conversion factors should be used.

Ambient/cooling water temperature	(°C)	25	30	35	40	45	50
Factor	f1	1	0.97	0.94	0.87	0.75	0.62
Inlet temperature	(°C)	30	35	40	45	50	55	60
Factor	f2	1.29	1	0.85	0.72	0.58	0.48	0.38

Note: If you are interested in our designs and details, please contact us for a quote text &products presentation.
