Compressor Airend(Air)



       We are factory and we have  many certified suppliers of the compressor parts, so we can offer all kinds of screw & scroll  compressor parts with high quality and competitive price.

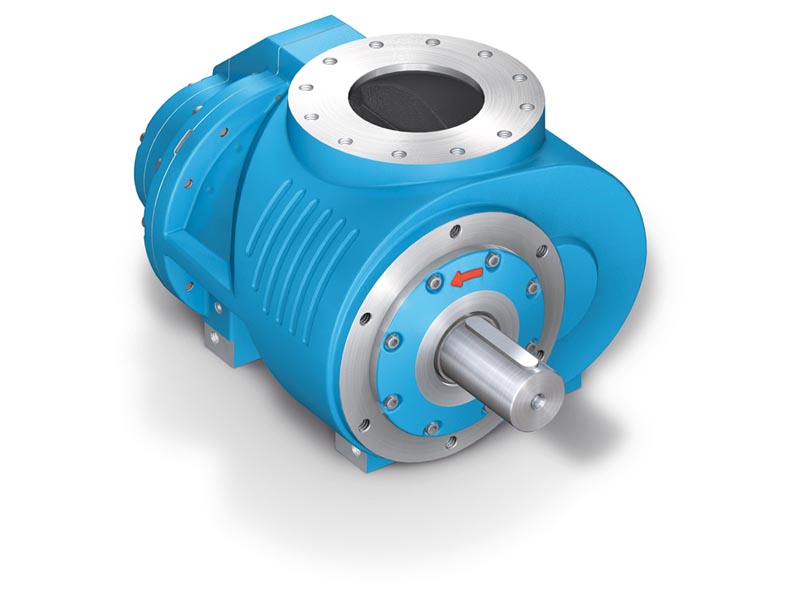

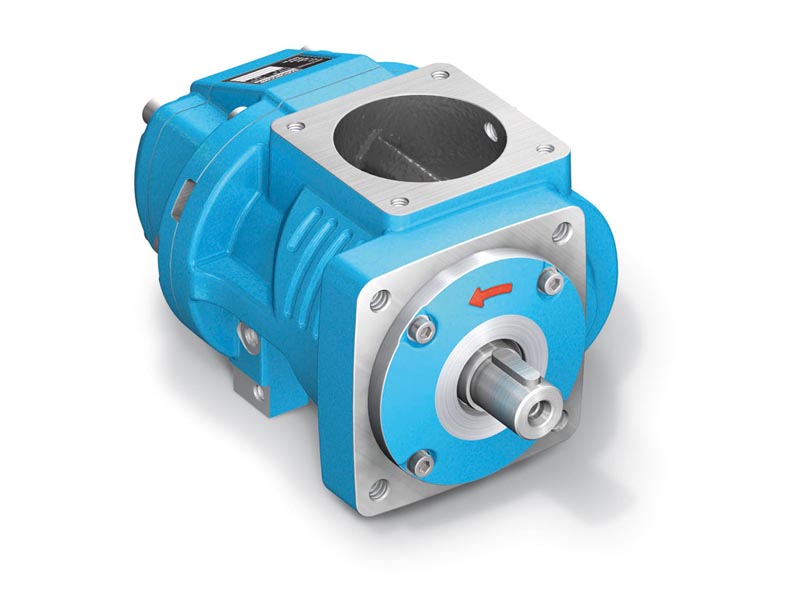

EVO Series Airend (Germany Rotorcomp)

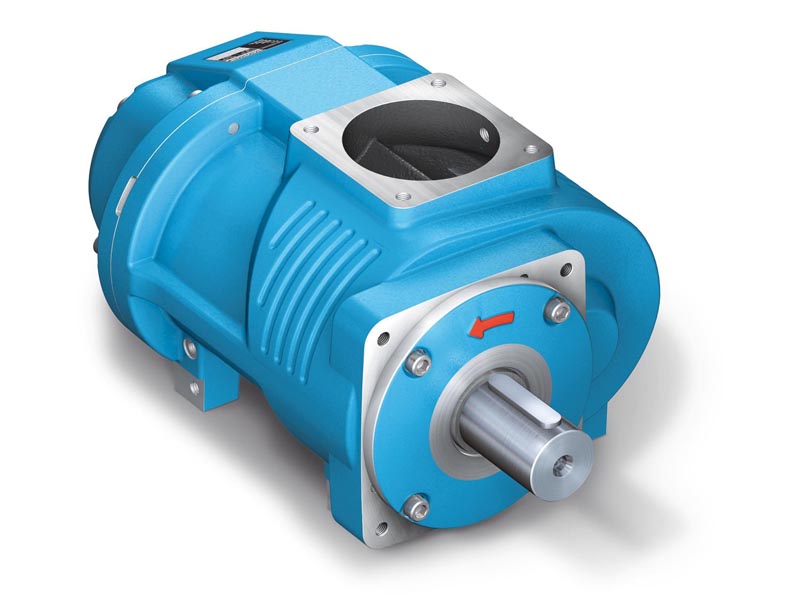

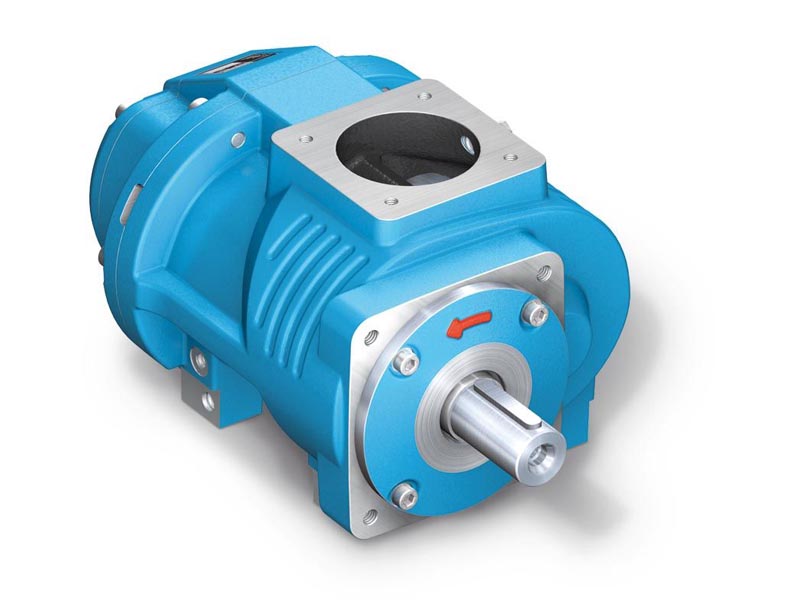

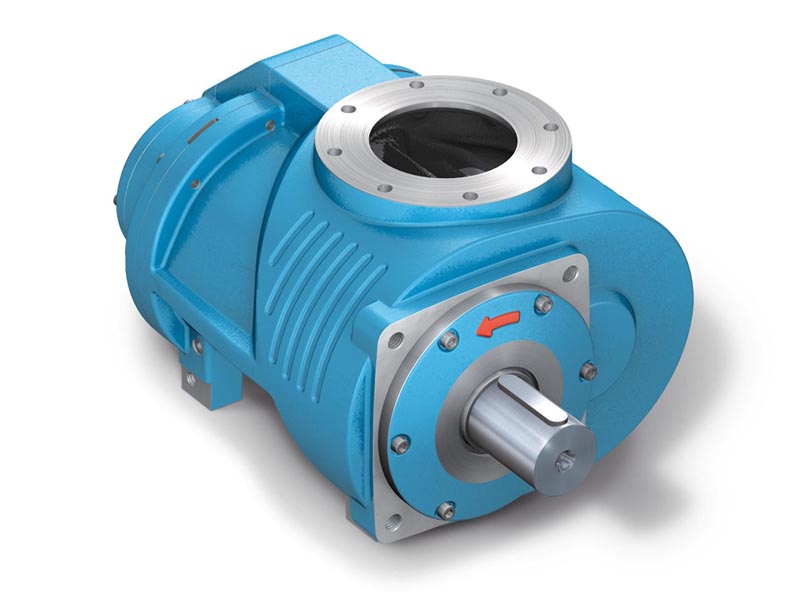

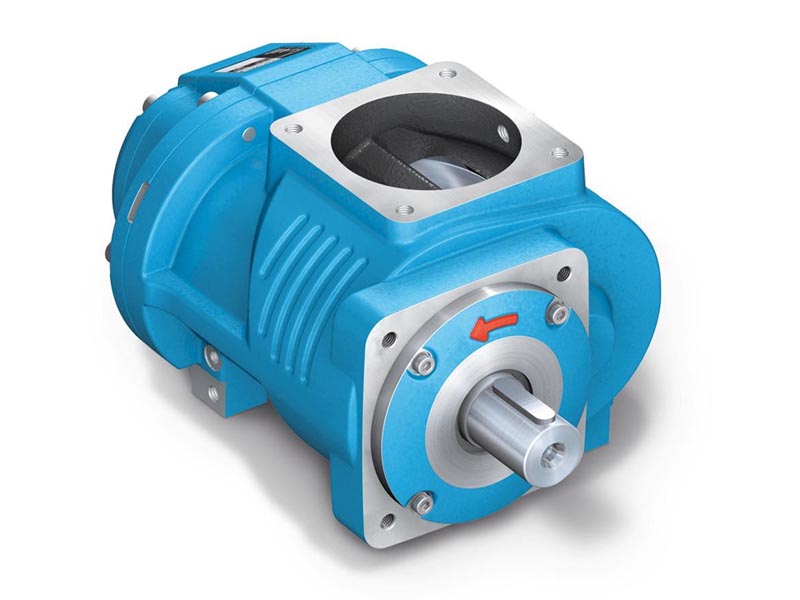

　      EVO2                                   EVO3                                 EVO6                                                           EVO9                                 EVO15                                        EVO28                                EVO42

Model	Recimmended motor power min.- max.	Max. flow rate  at 7 bar	Pressure range min. - max.	Net Weight
	kw	m3/min	barg	kg
EVO2	3-11	1.6	5-15	15
EVO3	5.5-18.5	2.8	5-15	21
EVO6	15-37	5.5	5-15	45
EVO9	22-55	8.4	5-15	68
EVO15	45-90	14.4	5-15	126
EVO28	75-160	26.3	5-15	269
EVO42	132-250	38.5	5-15	392

Advantages of our EVO Technology

>New ROLLING PROFILE® - ultimate efficency with redused nocie

>Long life cycle due to increased bearing dimensions and wear -free ROLLING PROFILE®

>Wide operating pressure range from 5 to 15 barg

>High quality manufacturing and assembling - "Made in Germany"

>Quality assurance - bench test of every air end before leaving the factory

>Easy application selection with our new ROTORCOMP SIZING AIR SOFTWARE

>Highest flexibility for yuor package design





　

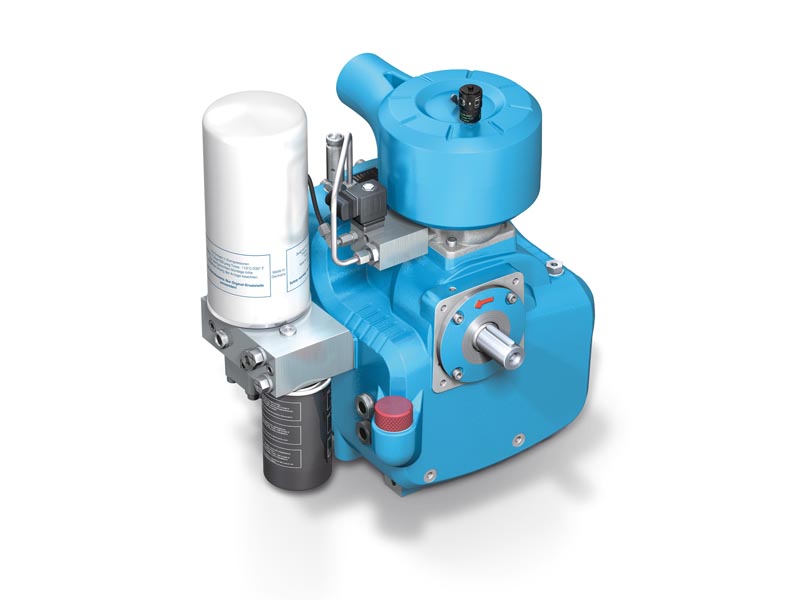

EVO-NK Series Airend (Germany Rotorcomp)

　

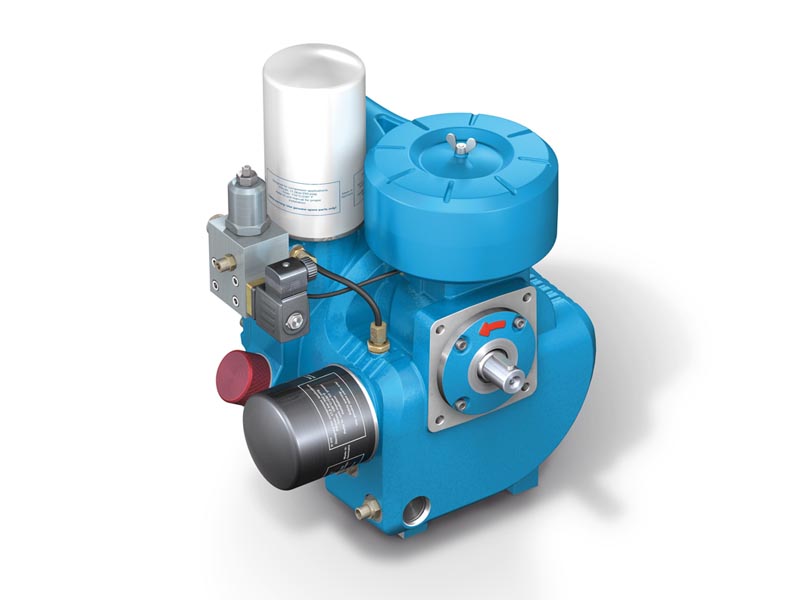

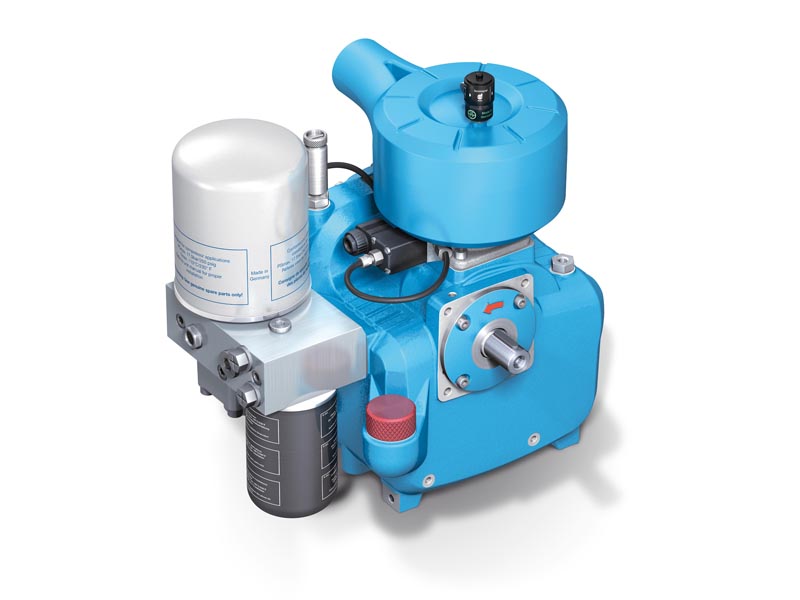

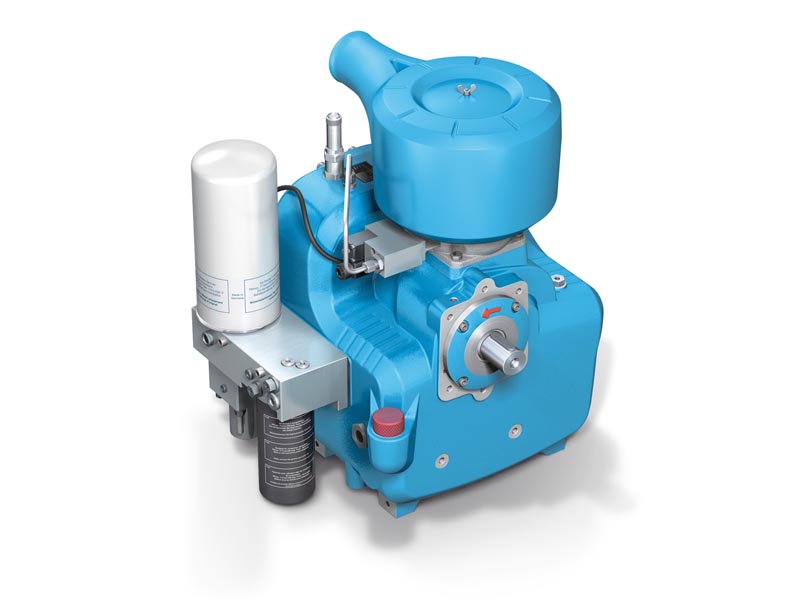

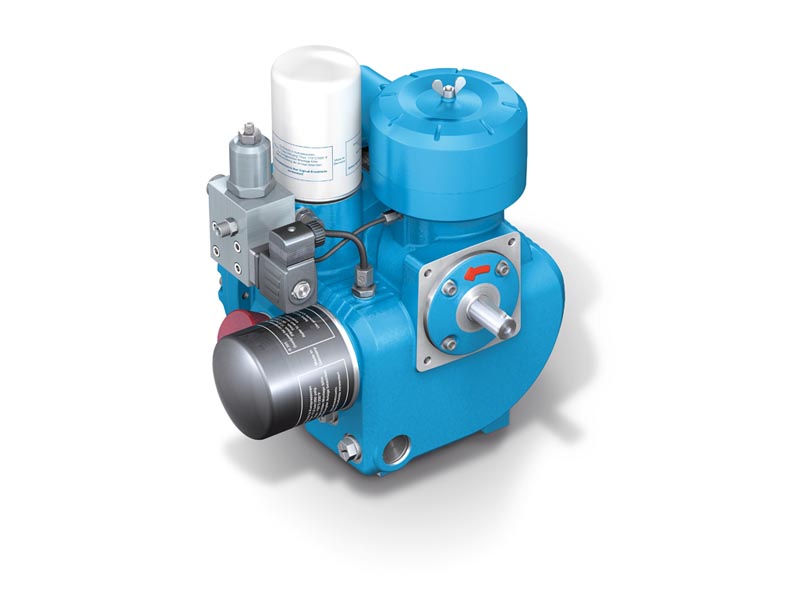

       EVO1-NK                              EVO2-NK                              EVO3-NK                                       EVO6-NK                                     EVO9-NK

Model	Recimmended motor power min.- max.	Max. flow rate  at 7 bar	Pressure range min. - max.	Net Weight
	kw	m3/min	barg	kg
EVO1-NK	2.2-5.5	0.8	5-15	31
EVO2-NK	4.0-11	1.6	5-15	40
EVO3-NK	7.5-18.5	2.8	5-15	54
EVO6-NK	15.0-37.0	5.5	5-15	99
EVO9-NK	22.0-55.0	8.4	5-15	199

Integrated components are

>EVO® oil injected air end with ROLLING PROFILE®

>Intake valve with control unit and air filter

>Oil reservoir and oil separation system with coalescing cartridge(s)

>Oil filter and oil thermo valve

>Minimum pressure and non return valve

>Various options available such as safety valve, oil level sight glass, maintenance indicators

　

Scroll Airend

　

	Model	Motor power min.- max.	Max. flow rate	Pressure range ope./max.	Net Weight
		kw	m3/min	barg	kg
	SS-0.4/8	2.2-3.7	0.4	7/8	28
	SS-0.6/8	3.7-5.5	0.6	7/8	36

　

Note: If you are interested in our designs and details, please contact us for a quote text &products presentation.
