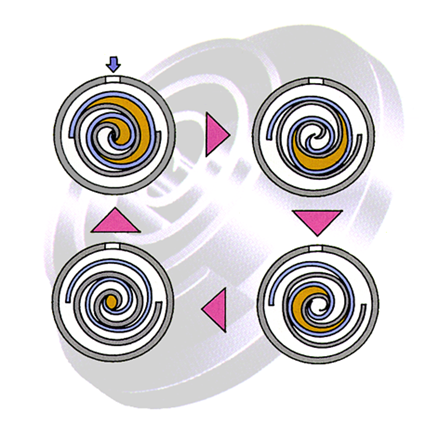

SCROLL compressors are interesting alternative for generating oil-free compressed air.The process of compression is achieved by means of a fixed and an eccentrically revolving spiral. Any contact is thereby eliminated, guaranteeing reliable operation and low wear.
The SS10-SS45 compressors fit in all applications where efficiency and flexibility play a major role. Unnecessary energy consumption is avoided because only the units run that are needed. Lead or Run-on time of the compressors does not exist.

Model	Free Air Delivery(m3/min)*				Motor Power(kw)*		Compressed Air Outlet	Noise Level	Dimensions	Weight
	7bar	8bar	10bar	13bar	Main Motor	Fan Motor		dB(A)**	L×W×H in mm	kg
SS-2.0	0.18	0.16	/	/	1.5	/	G1/2	55	750×650×800	120
SS-3.0	0.26	0.24	0.20	/	2.2	/	G1/2	55	750×650×800	125
SS-5.0	0.45	0.40	/	/	3.7	/	G1/2	55	750×650×800	150
SS-7.5	0.63	0.60	0.44	/	5.5	/	G1/2	58	750×650×800	160
SS-10	0.87	0.85	/	/	7.5	/	G3/4	58	750×650×800	170
SS-15	1.79	1.58	1.32	/	2×5.5	/	G1	62	1400×920×1050	390
SS-22	2.40	2.15	1.84	/	3×5.5	/	G1	63	1400×920×1750	600
SS-30	3.00	2.90	2.52	/	4×5.5	/	G1	65	1400×920×1750	720
SS-37	3.51	3.16	2.71	/	5×5.5	/	G1	68	1400×920×1750	860
SS-45	4.88	4.32	3.64	/	6×5.5	/	G1	69	1400×920×1750	1050

　

*   Electric connection:220V/50Hz/single phase(SS-2.0 to SS-3.7);380V/50Hz/3phase for other models,Speical on request;

** according to DIN EN ISO 2151:2009;

Option:

1.Star-delta-starter (SS-7,5 and SS-10) ;

2.Super silence version (reduce 2-3 dB(A)) ;

3.External air intake;

4.Integrated with dry and air receiver;

5.Outlet ball valve;

6.Electrical feed cable;

Note: If you are interested in our designs and details, please contact us for a quote text &products presentation.
