| Model |
Free Air Delivery(m3/min)* |
Motor Power(kw) |
Gasr Outlet |
Noise Level |
Dimensions |
Weight |
| 8bar |
10bar |
13bar |
15bar |
Main Motor |
Fan Motor |
dB(A)** |
LกมWกมH in mm |
kg |
| SG-F10 |
0.30-1.20 |
0.26-1.04 |
0.23-0.90 |
0.2-0.80 |
7.5 |
0.09 |
G1 |
69 |
900กม750กม900 |
260 |
| SG-F15 |
0.45-1.79 |
0.40-1.58 |
0.35-1.32 |
0.3-01.17 |
11 |
0.18 |
G1 |
70 |
1000กม800กม1200 |
390 |
| SG-F20 |
0.60-2.40 |
0.55-2.15 |
0.46-1.84 |
0.42-1.66 |
15 |
0.18 |
G1 |
70 |
1000กม800กม1200 |
400 |
| SG-F25 |
0.75-3.00 |
0.73-2.90 |
0.65-2.52 |
0.55-2.02 |
18.5 |
0.37 |
G1 |
71 |
1300กม960กม1300 |
540 |
| SG-F30 |
0.88-3.51 |
0.80-3.16 |
0.68-2.71 |
0.62-2.45 |
22 |
0.37 |
G1 |
71 |
1300กม960กม1300 |
560 |
| GL-F40 |
1.25-4.88 |
1.10-4.32 |
0.95-3.64 |
0.82-3.25 |
30 |
0.75 |
G1-1/4 |
71 |
1400กม1000กม1300 |
680 |
| SG-F50 |
1.46-5.83 |
1.31-5.21 |
1.11-4.44 |
1.02-4.01 |
37 |
0.75 |
G1-1/4 |
73 |
1400กม1000กม1300 |
700 |
| SG-F60 |
1.77-7.08 |
1.58-6.30 |
1.36-5.43 |
1.25-4.94 |
45 |
1.10 |
G1-1/4 |
75 |
1400กม1000กม1300 |
1100 |
| SG-F75 |
2.33-9.32 |
2.09-8.33 |
1.77-7.05 |
1.58-6.31 |
55 |
1.10 |
G2 |
75 |
1600กม1200กม1650 |
1650 |
| SG-F100 |
3.1-12.31 |
2.8-11.13 |
2.44-9.61 |
2.19-8.74 |
75 |
1.10 |
G2 |
75 |
1600กม1200กม1650 |
1800 |
| SG-F125 |
4.2-16.45 |
3.6-14.26 |
3.0-11.72 |
2.70-10.8 |
90 |
2.20 |
G2 |
75 |
2000กม1580กม1790 |
2700 |
| SG-F150 |
5.1-20.26 |
4.4-17.48 |
3.6-14.25 |
3.3-13.05 |
110 |
2.20 |
G2 |
78 |
2500กม1700กม1900 |
3100 |
| SG-F180 |
5.8-23.08 |
5.2-20.54 |
4.5-17.65 |
4.2-16.05 |
132 |
2.20 |
G2 |
78 |
2500กม1700กม1900 |
3250 |
* according to ISO1217 part C,Air
delivery range:25%-100%(15Hz-60Hz);
** according
to CAGI PNEUROP PN 8 NTC 2;
***EX dII BT4;
Option:

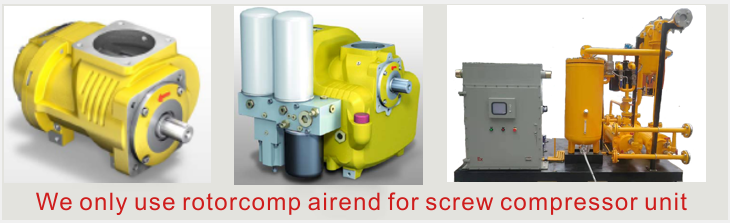

1.Compact design airend (EVO-NK-GAS) up to 75Kw;
3.Water cooling type;
