Model	Filtration Precision	Removal of Oil Mist	Removal of Particales
	um	%	%
C	3	40	99.99
T	1	70	0.14
A	0.01	99.999	99.9999
H	0.01	99.9999	99.99999

*Working Pressure::<10bar, Others pressure on request;

  Inlet Temperature:≤66℃;

  Pressure Drop (new):<0.15bar

　

C,T,A and H series Air Filters

　

Model	Flow Capacity	Qty of Elements	Compressed Air Connection	Dimensions	Weight
	(Nm3/min)**	pc		L×W in mm	kg
*-016	1.6	1	G1	290×90	1.1
*-026	2.6	1	G1-1/2	340×110	2.2
*-038	3.8	1	G1-1/2	340×110	2.7
*-070	7.0	1	G1-1/2	490×110	3.2
*-100	10	1	G2-1/2	560×150	8.0
*-150	15	1	G2-1/2	960×150	16
*-200	20	1	DN80	1100×350	45
*-300	30	2	DN100	1200×400	55
*-350	35	2	DN100	1200×460	65

Note: * can be C,T,A,F,H

            Working Pressure:≤10bar,Others pressure on request;

Option:

1.Auto Drain Valve: Mechanical, Level-controlled, Timmer-controlled.

　

Conversion factors
Conversion factor f at other operating pressures

Over-pressure	(bar)	1	2	3	4	5	6	7	8	9	10
Factor	f	0.25	0.38	0.5	0.63	0.75	0.88	1	1.13	1.25	1.38

　

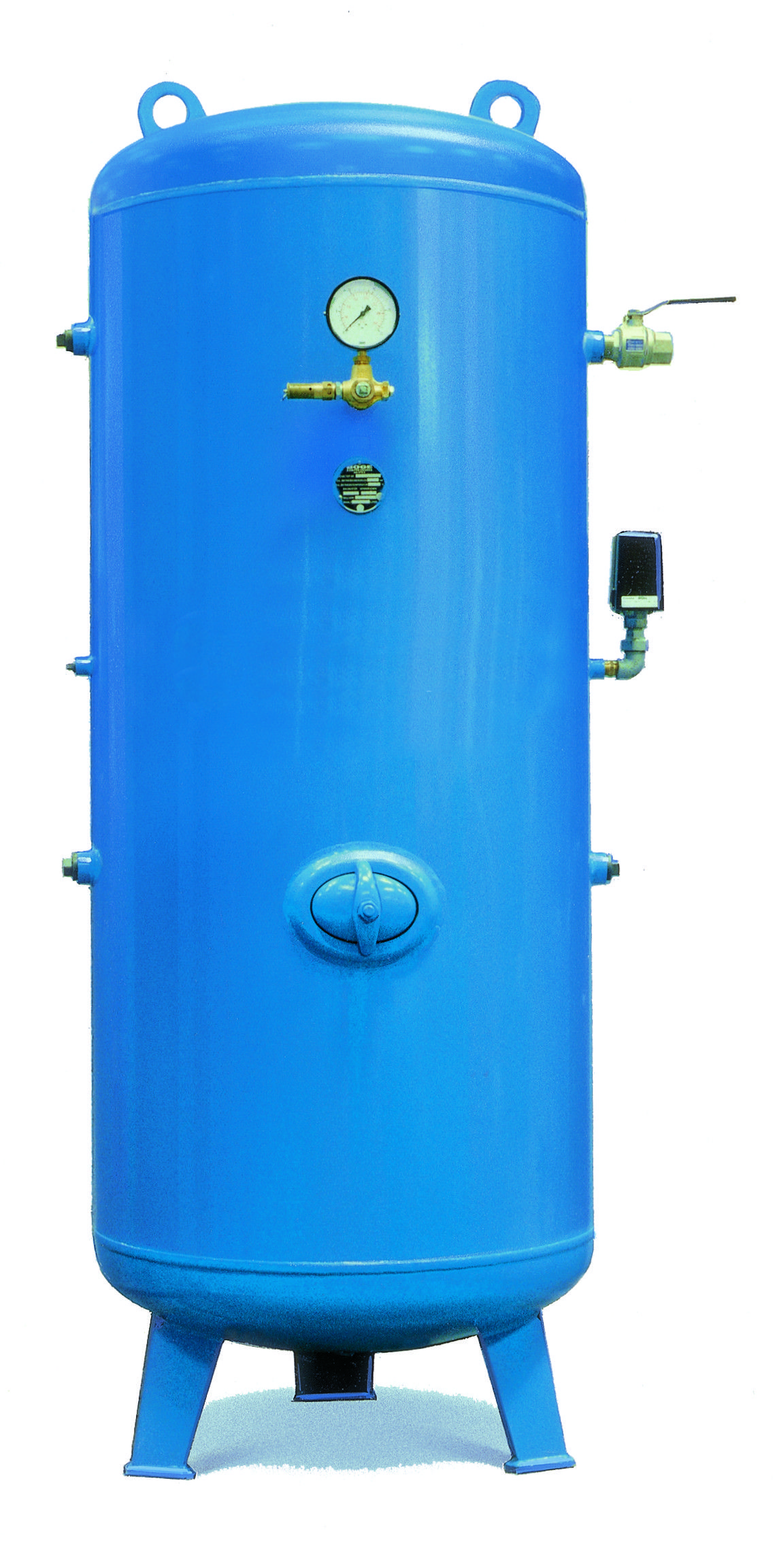

Air Receiver

　

Model	Capacity	Design Tem.	Connection Size			Dimensions  in mm
	(m3)	℃	Inlet	Outlet	Drain	H	Φ	H1	H2	Φ1	d
*-0300	0.3	100	G1-1/2	G1-1/2	R3/4	1594	550	667	1242	400	20
*-0500	0.5	100	G1-1/2	G1-1/2	R3/4	2100	600	680	1680	420	20
*-0600	0.6	100	G1-1/2	G1-1/2	R3/4	2140	650	695	1705	470	20
*-1000	1.0	100	G2	G2	R3/4	2520	750	800	1920	560	24
*-1500	1.5	100	G2-1/2	G2-1/2	R3/4	2538	950	769	2069	670	24
*-2000	2.0	100	G2-1/2	G2-1/2	R1	2850	1000	780	2282	700	24
*-2500	2.5	100	DN80	DN80	R1	2750	1200	885	2185	840	24
*-3000	3.0	100	DN100	DN100	R1	2800	1300	906	2207	950	24

Note: * can be 8,10 and 13 bar (working pressure).others pressure on request;

Option:

1. Horizontal Receiver;

2. Galvanised Receiver;

3. Stainless Material Receiver;

4. Auto Drain Valve: Mechanical, Level-controlled, Timmer-controlled.

　
