Compressor Airend(Gas)



       We are factory and we have  many certified suppliers of the compressor parts, so we can offer all kinds of screw & scroll  compressor parts with high quality and competitive price.

EVO-Gas Series Airend (Germany Rotorcomp)

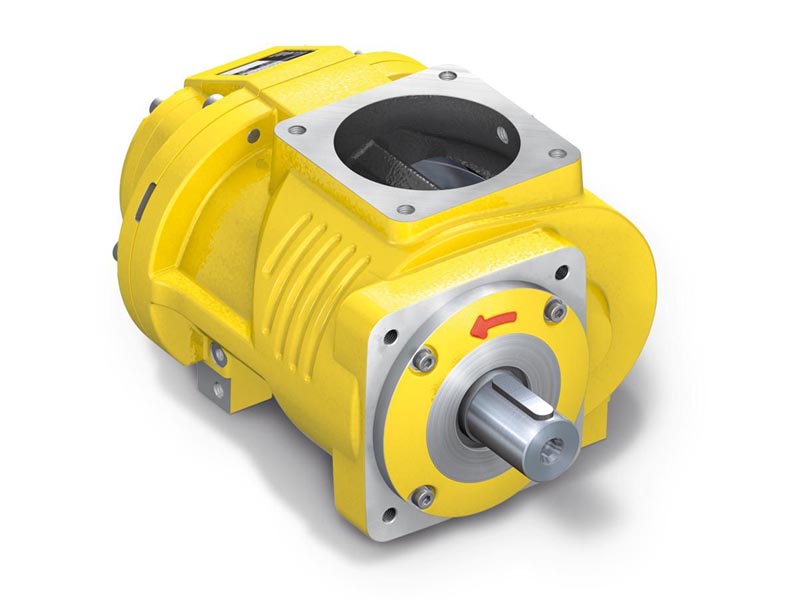

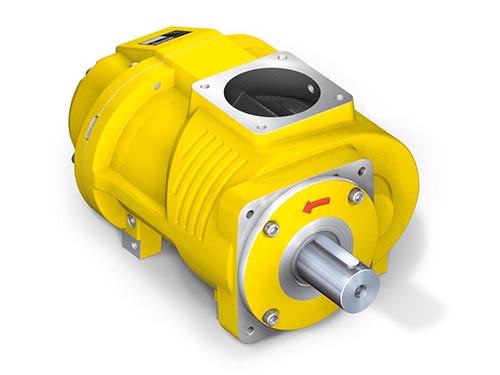

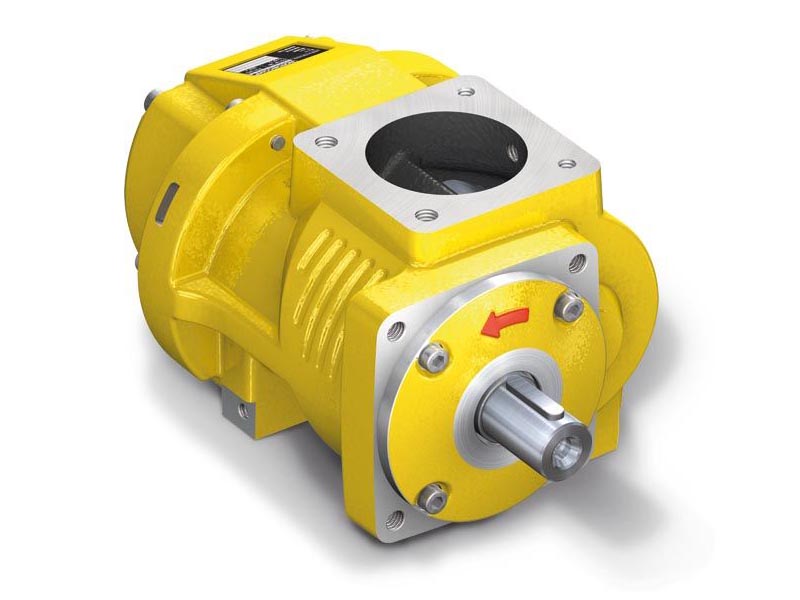

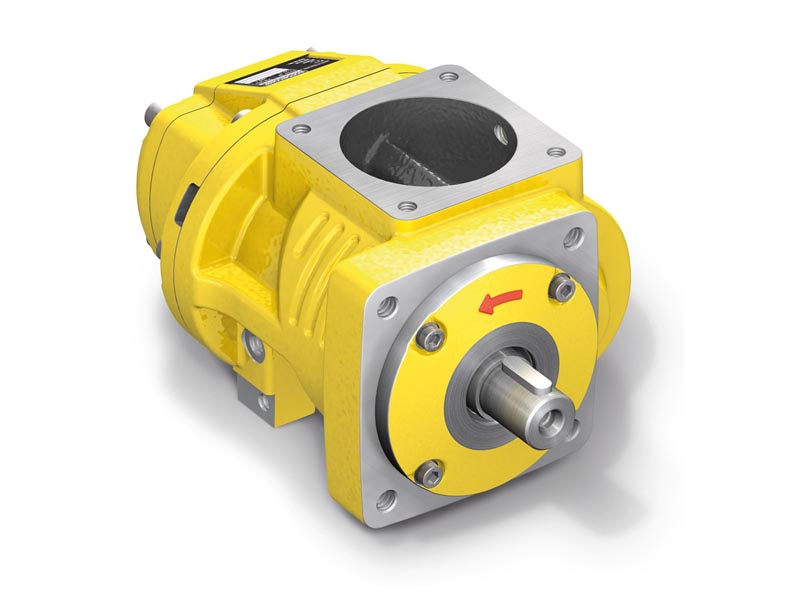

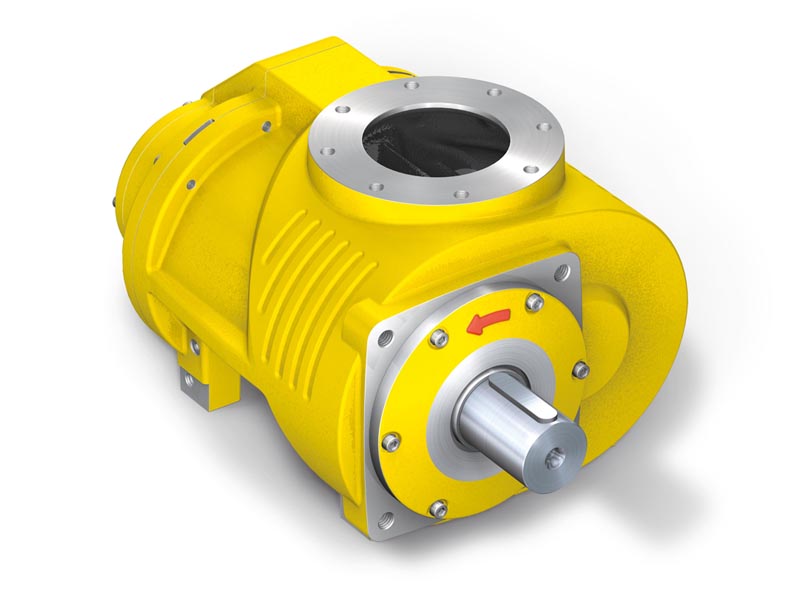

　      EVO2-GAS                               EVO3-GAS                                EVO6-GAS                              EVO9-GAS                                EVO15-GAS                          EVO28-GAS                                  EVO76-GAS

Model	Recimmended motor power min.- max.	Max. flow rate  at 7 bar	Pressure range min. - max.	Net Weight
	kw	m3/h	barg	kg
EVO2-GAS	11	96	5-15	15
EVO3-GAS	18.5	162	5-15	21

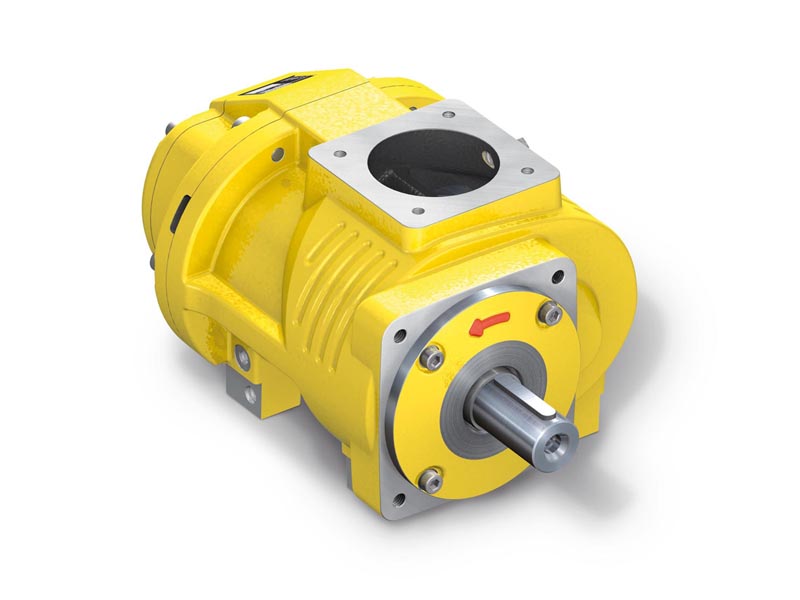

EVO6-GAS	37	330	5-15	45
EVO9-GAS	55	504	5-15	68
EVO15-GAS	90	860	5-15	126
EVO28-GAS	160	1500	5-15	269

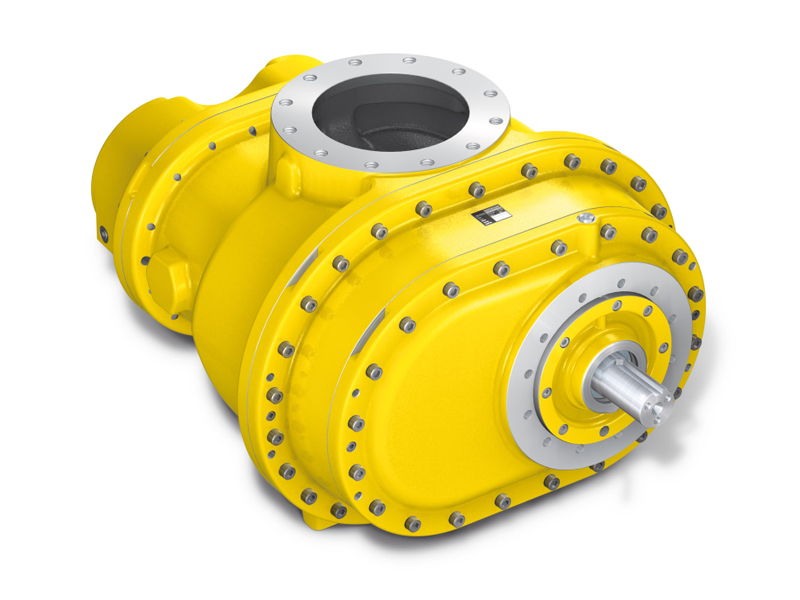

EVO76-GAS	540	4560	5-15	1289

Advantages of our EVO-GAS Technology



ROTORCOMP® rotary screw gas ends are especially suited for gas compressor application.

The new EVO® wear free ROLLING PROFILE ® with improve efficiency and the generaously

dimensioned subassemblies guaratee a high life cycle .





　

EVO-NK-Gas Series Airend (Germany Rotorcomp)

　

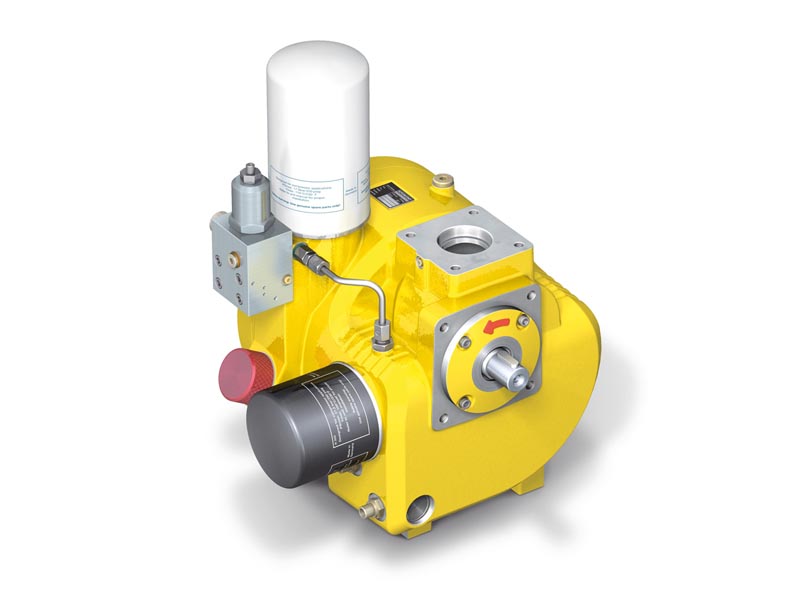

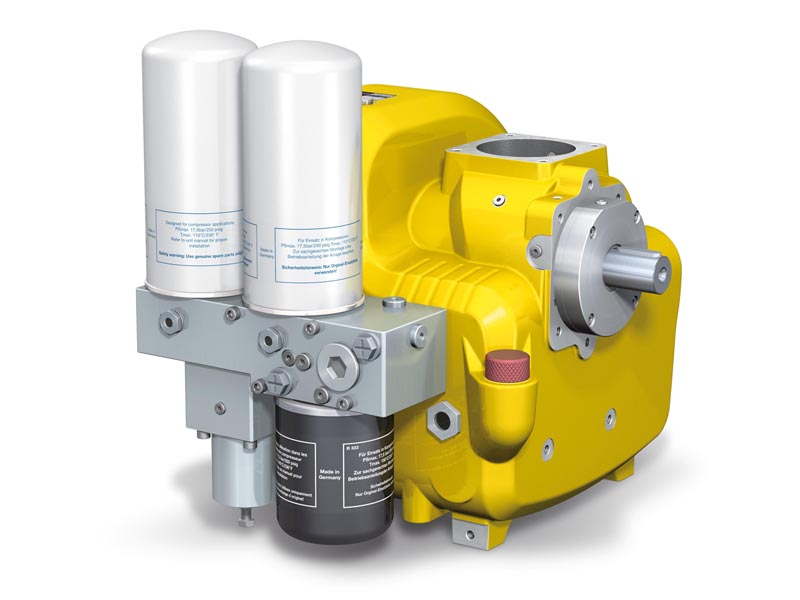

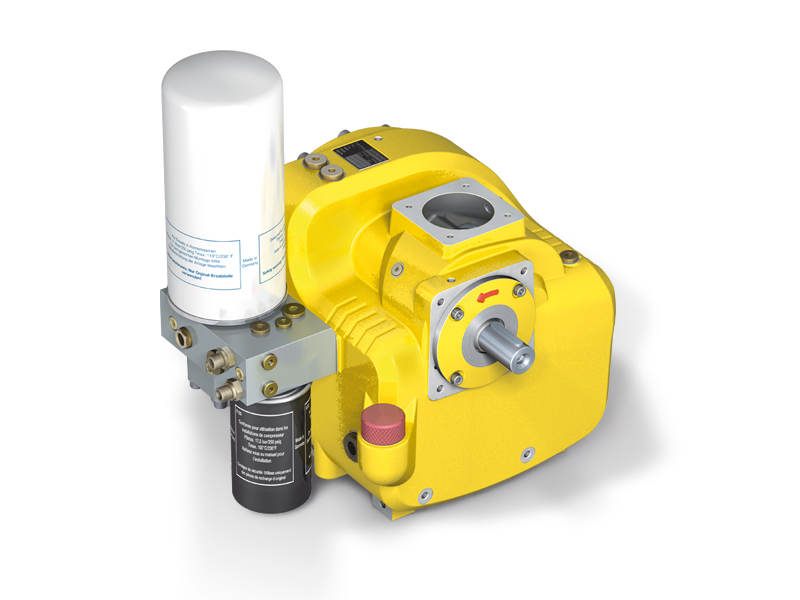

       EVO2-NK-GAS                        EVO3-NK-GAS                     EVO6-NK-GAS                             EVO9-NK-GAS                            NK200-GAS

Model	Recimmended motor power min.- max.	Max. flow rate  at 7 bar	Pressure range min. - max.	Net Weight
	kw	m3/h	barg	kg
EVO2-NK-GAS	11	96	5-15	41

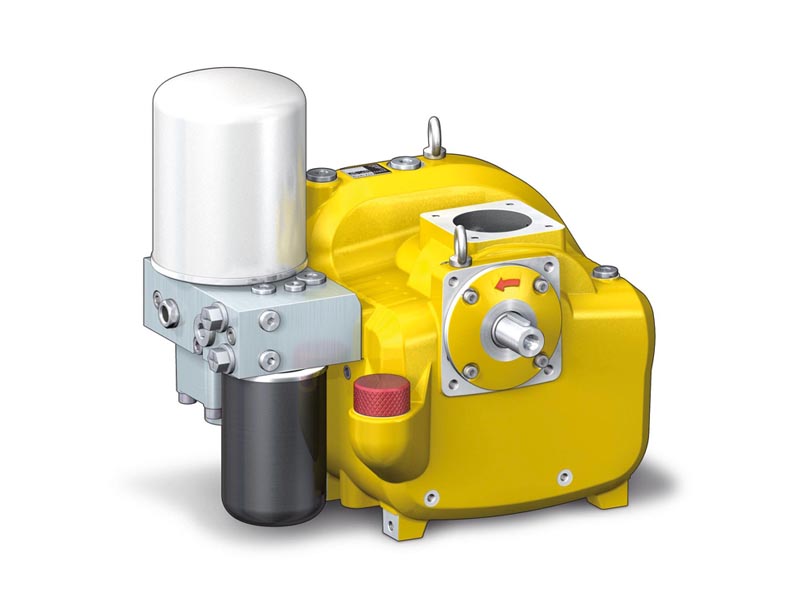

EVO3-NK-GAS	18.5	162	5-15	55
EVO6-NK-GAS	37	330	5-15	99
EVO9-NK-GAS	55	504	5-15	199

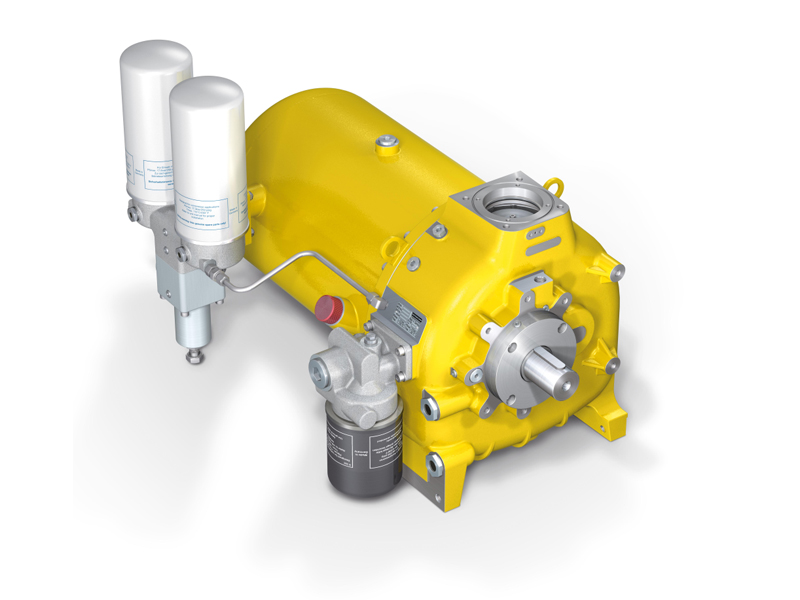

NK200-GAS	75	600	5-15	263

Integrated components are

>EVO® oil injected air end with ROLLING PROFILE®

>Intake valve with control unit and air filter

>Oil reservoir and oil separation system with coalescing cartridge(s)

>Oil filter and oil thermo valve

>Minimum pressure and non return valve

>Various options available such as safety valve, oil level sight glass, maintenance indicators



Note: If you are interested in our designs and details, please contact us for a quote text &products presentation.
