Model	Free Air Delivery(m3/min)*				Motor Power(kw)		Compressed Air Outlet	Noise Level	Dimensions	Weight
	8bar	10bar	13bar	15bar	Main Motor	Fan Motor		dB(A)**	L×W×H in mm	kg
SL-F-7.5	0.22-0.87	0.19-0.75	0.16-0.61	0.14-0.53	5.5	0.09	G1	69	900×750×900	255
SL-F-10	0.30-1.20	0.26-1.04	0.23-0.90	0.2-0.80	7.5	0.09	G1	69	900×750×900	260
SL-F-15	0.45-1.79	0.40-1.58	0.35-1.32	0.3-01.17	11	0.18	G1	70	1000×800×1200	390
SL-F-20	0.60-2.40	0.55-2.15	0.46-1.84	0.42-1.66	15	0.18	G1	70	1000×800×1200	400
SL-F-25	0.75-3.00	0.73-2.90	0.65-2.52	0.55-2.02	18.5	0.37	G1	71	1300×960×1300	540
SL-F-30	0.88-3.51	0.80-3.16	0.68-2.71	0.62-2.45	22	0.37	G1	71	1300×960×1300	560
SL-F-40	1.25-4.88	1.10-4.32	0.95-3.64	0.82-3.25	30	0.75	G1-1/4	71	1400×1000×1300	680
SL-F-50	1.46-5.83	1.31-5.21	1.11-4.44	1.02-4.01	37	0.75	G1-1/4	73	1400×1000×1300	700
SL-F-60	1.77-7.08	1.58-6.30	1.36-5.43	1.25-4.94	45	1.10	G1-1/4	75	1400×1000×1300	1100
SL-F-75	2.33-9.32	2.09-8.33	1.77-7.05	1.58-6.31	55	1.10	G2	75	1600×1200×1650	1650
SL-F100	3.1-12.31	2.8-11.13	2.44-9.61	2.19-8.74	75	1.10	G2	75	1600×1200×1650	1800
SL-F125	4.2-16.45	3.6-14.26	3.0-11.72	2.70-10.8	90	2.20	G2	75	2000×1580×1790	2700
SL-F150	5.1-20.26	4.4-17.48	3.6-14.25	3.3-13.05	110	2.20	G2	78	2500×1700×1900	3100
SL-F180	5.8-23.08	5.2-20.54	4.5-17.65	4.2-16.05	132	2.20	G2	78	2500×1700×1900	3250

*   according to ISO1217 part C,Air delivery range:25%-100%(15Hz-60Hz);

** according to CAGI PNEUROP PN 8 NTC 2;

Option:

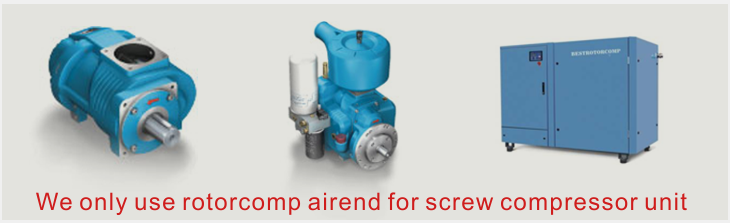

1.Compact design airend (EVO-NK) up to 75 Kw;

2.Integrated with dry and air receiver (SL-F-7.5-SF--50);

Note: If you are interested in our designs and details, please contact us for a quote text &products presentation.
